From Start to Finish
We Have it Handled.

We specialize in full solution grain handling setups, including a wide range of bucket elevators and conveyors. Our turnkey offering also includes Grain Dryer Systems, Grain Cleaning & Processing Plants, Automated Bin Sites and Producer Loading Sites.

DESIGN & LAYOUT

Our staff have over 20 years of experience designing grain handling facilities. A full layout and design can be created based on your business needs and desired function of your site.

SETUP & INSTALLATION

Flaman Grain Systems experts are here to guide the set-up and installation process of your whole grain handling system, helping you pick and choose the right contractor for your project.

MAINTENANCE & SERVICE

It’s important to us you have peace of mind, before and after your purchase. If for any reason you require maintenance, our Flaman Grain Systems experts are available to get you the right crew for the job.

Whether you're starting from scratch or working
with an existing site, tell us how we can help.

Walinga Ultra-Veyor

Move your grain safer and easier, without elevator legs or portable augers.

The Walinga pneumatic blower system is a simple and affordable way to move product. Include it as part of a new grain handling system, or easily add it to an existing site.

Easy

The Ultra-Veyor moves bulk product virtually dust and damage free without the use of heavy augers.


Safe

Maintenance is performed easily at ground level with simple access to all filters, belts and lubrication points.



Simple

Not only an economic & affordable solution for long distance conveyance, it’s also simple to install and gentle on product.

How It Works

Your ultimate bulk transfer system

1

Smart-Flo

Variable Frequency Drive Systems monitor and automatically adjust motor speeds, optimizing performance while reducing energy costs and bulk damage.

2

Super Hardened SRT Blower

Experienced in the manufacturing of feed and grain handling equipment, Walinga is first for quality. Walinga blowers are fabricated from special alloy castings that facilitate hardening.

3

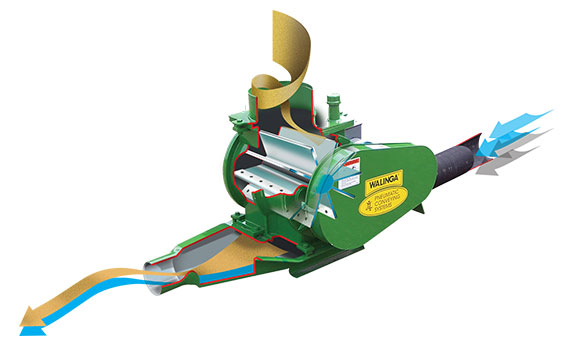

Airlock Package

Designed for maximum efficiency and minimal grain damage, the housing is precision machined from a cast iron shell for unequaled performance.

Capacity

Capacity in dry corn / Deduct 30% if conveying wheat or beans

*Single phase option available up to 40 HP


Your Ultra-Veyor Grows As You Grow

It’s nice to plan ahead and avoid expensive upgrades. The Walinga Ultra-Veyor system is so flexible, easy to install or retrofit that you can add to your system as your business grows. Choose from an extensive selection of options and specifications to perfectly match your current business demands and keep those hard-earned dollars in your pocket.



Contact us for a free site plan and to see how the Walinga Ultra-Veyor can be part of your grain handling solution.

Bucket Elevators Capacity up to 20,000 BPH

We offer a wide range of models to ensure we match a bucket elevator that is right for your operation.


Elevator Head

  • Curved design for minimal product impact
  • Two-piece hood design for interior access
  • Shaft seals for dust & weather protection
  • Static conductive, oil resistant & fire retardant drum pulley (SCOFR)
  • Inspection ports for belt tracking
  • Shaft-mounted DODGE gearbox
  • Double or triple ply SCOFR Goodyear belting

OPTIONAL
Liner packages (incl: UHMW and tile) for abrasive use

Elevator Boot

  • Winged “easy clean” pulley
  • Easy-access clean-out doors (16” pulley & larger)
  • Externally mounted block bearings
  • Shaft seals for weather/dust protection
  • Threaded rod belt adjustment
    OPTIONAL
  • Up-Leg or Down-Leg boot hoppers
  • Flanged boot hoppers

Elevator Trunking

  • Curved design for minimal product impact
  • Double legged trunking design
  • 14ga, 12ga and 10 ga available (size dependent)
  • Laser-cut Flanges (to ensure hole pattern alignment)
  • Trunking seams are track welded for strength and dust/weather protection.
  • Connector plates included with each section to ensure simple installation.
  • Service trunking has inspection ports for easy access to belting and buckets

Chain Drag - En-Masse, Incline & Screw Conveyors


En-Masse Conveyor

En-Masse conveyors are used for applications such as Grain Drying Handling Systems, Feed Mills and Feed Lots. They are designed to effectively clean-out and prevent contamination.

  • 12 gauge standard conveyor structure (10 gauge optional)
  • CNC machined 1/2” thick UHMW paddles
  • Chain available in 81X, 81XH and 81XHH (24,000, 44,000 and 49,000 lb average tensile strength)
  • UHMW return rollers
  • Self-Cleaning Tail Section (standard on all models)
  • ACME screw slack adjustment
  • Removable conveyor covers

Incline Conveyor

Flaman has a full line of Incline Chain Conveyors that are proven to be efficient and low maintenance, transporting from 15° - 45° while preventing product fall-back.

  • 12 gauge standard conveyor structure (10 gauge optional)
  • CNC machined 1/2” thick UHMW paddles
  • Chain available in 81X, 81XH and 81XHH (24,000, 44,000 and 49,000 lb average tensile strength)
  • UHMW return rollers
  • Self-Cleaning Tail Section (standard on all models)
  • ACME screw slack adjustment
  • Removable conveyor covers

Screw Conveyor

Need a solution that is Cost-Effective & Versatile?

  • Capable of a wide range of run lengths
  • Custom configured to handle any free-flowing material
  • Belt, Chain and Direct Drive configurations
  • Split Wood Hanger Bearings minimize wear and noise
  • Enclosed housing for protection and dust containment.
  • Valves, adapters and spouting available
  • Various inlet options available
  • Range of mounting accessories available.

Support Structures, Buckets, Belting & Accessories

We carry major brands in stock so we can offer you the convenience of next day shipping.

Support Towers, Staircases & Cat Walks

Flaman supplies both Painted and Galvanized designs with built support towers that will offer you reliable stability without the need for guy-wiring.

  • Powder Coated or Galvanized
  • 8’x8’, 10’x10’ and 12’x12’ towers
  • Engineered towers up to 160’
  • Switchback staircases
  • Catwalks available in various widths and spans
  • Grip stair tread

Ladders, Cages & Rest Platforms

Safely access your bucket elevator for inspection and maintenance.

  • The ladders and cages are built in 5’ and 10’ sections
  • Designed to meet OSHA standards.
  • Rest, distributor and service platforms are built to OSHA standards.

Buckets, Belting & Accessories

We carry major brands in stock so we can offer you the convenience of next day shipping.

  • Elevator Buckets
  • Belting available in 4” to 20”
  • Poly or Neoprene Spacers
  • Gripwell splicers
  • Durasplice fastener
