The Satake FMS-2000 is a portable, cost effective, full color RGB optical sorting machine for small and medium applications. This optical sorter incorporates advanced digital image processing and automatic image adjustment functions allowing for accurate sorting of many different products.
The FMS-2000 features a direct power supply to a single phase outlet. An aspiration system is built into the machine for simple dust control and removal. High resolution (0.14mm/pixel) full-color RGB cameras capture product images in 16 million different shades of color.
It also uses long life, low energy consumption lighting that uniformly illuminates the product. With an average lifespan of up to 20,000 hours.
Easy access to both the feeding and sorting areas for hassle-free maintenance and cleaning. As an added benefit, wheels allow for ultimate portability.
Incoming product is fed through a patented high-volume feed delivery system into an inclined 240mm chute opening. Three tray options allow various size product to flow smoothly and quickly.
The high capacity system is able to consistently sort from one to 4,000 pounds of product per hour while the precise small pitch ejectors effectively remove rejects.
An intuitive full color user interface touch panel is easy to use with similar actions to that of a small phone or tablet.
|Chute Width||240 mm|
|Power||Single Phase 200-240 VAC|
|Air Consumption||8-10 CFM|
|Number of Ejectors||48|
|Pixel Resolution||0.14 mm|
|Camera Resolution||2048 line Scan|
Used Bench Market Mobile Cleaner
Used Bench Market Mobile Cleaner Cyclone First air discharge Four individual shoots (four separations) 121.5 square feet of screening area Trailer model Fan (VFD Controller) Hopper control feed Ball Racks 1008 1 &…

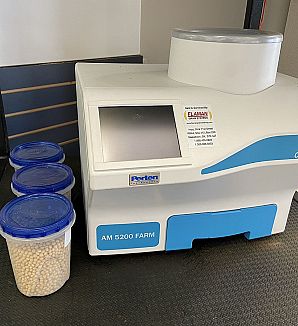

Perten Aquamatic 5200 Farm Grain Moisture Meter
